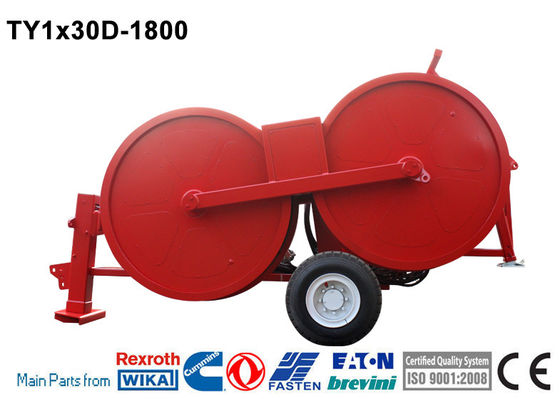

Stringing Tools Hydraulic Tensioner TY1x30D-1800 With Diesel Engine

MOQ:	1
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	20-45Days
Payment Method:	L/C,T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001, CE

Model Number

TY1x30D-1800

Max Continuous Tension:

Speed At Max Tension:

2.5km/h

Pull At Max Speed:

Max Reverse Pulling Force:

Bull-wheel Diameter:

1800mm

Max Conductor Diameter:

Overall Dimension (length*width*height):

5000*2000*2600mm

Type:

Stringing Equipment Hydraulic Tensioner

Highlight:

Stringing Tools Hydraulic Tensioner

Hydraulic Tensioner TY1x30D-1800

Product Description

Transmission Line Stringing Tools Hydraulic Tensioner with Diesel Engine

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Characteristics

Bull-wheel diameter: 1800mm

Max conductor diameter: 40mm

Groove number: 5

Total weight: 4600kg

Overall dimension (length*width*height): 5000*2000*2600mm

Performance

Max continuous tension: 30kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 15kN

Max reverse pulling force: 20kN

Main configuration

Engine: Changchai China

Hydraulic pump: German Concentric

Main motor: French Leduc

speed reducer: German Rexroth / Italy Bonfiglioli

Hydraulic valve: German Rexroth

Hydraulic meter: German WIKA

Engine

Single cylinder diesel engine 18kw(25hp)

Electrical system 12V

Hydraulic Transmission

The machine can realize step less speed
The machine is provided with tension presetting system

Additional Devices

Air brake system for the trailer (extra charge)

Hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 15 km/h

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Grounding connection point

Stringing Tools Hydraulic Tensioner TY1x30D-1800 With Diesel Engine 0
