Name: Stringing Pulley Nylon Double Sheave Block OPGW Cable Replacement Pulley
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: BSH2-OPGW2
Availability: InStock

MOQ:	100pieces
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	100000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

BSH2-OPGW2

Rated Load(KN):

Outline Size (mm):

128x65x365

Wheel Material:

Nylon

Type:

OPGW Cable Replacement Pulley

Highlight:

nylon double sheave stringing pulley

OPGW cable replacement pulley

stringing pulley with warranty

Product Description

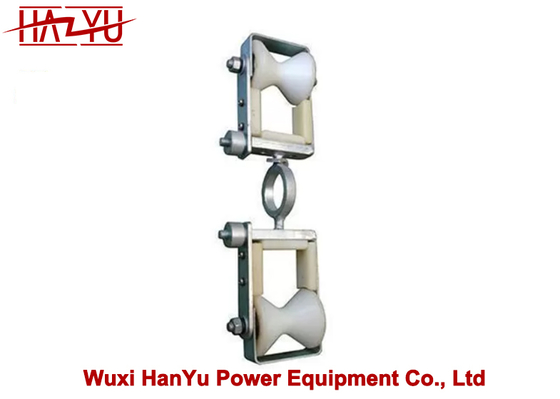

Stringing Pulley Nylon Double Sheave Block OPGW Cable Replacement Pulley

This double sheave block for changing line is a optical fiber cable stringing equipment, these nylon rollers have the best Nylon made, with the special surface treatment, so it is very strength and smooth, after millions times applied, it still can keep this situation, with the least friction.
Model	Outline size (mm)	Rated load(KN)	Wheel material
BSH2-OPGW2	128x65x365	2	Nylon
In each frame are fitted: one grooved nylon roller with two ball bearings three nylon plates to guarantee the OPGW protection
One side of each frame can be easily opened by a knurled nut.
This device is specifically designed for replacement of an existing ground wire (G.W.) with OPGW (Optical Grounding Wire). It is composed by two galvanized steel half frames linked by a ring with a swivel plate.
The frame have been designed in order to avoid any contact of the OPGW with the steel part.
