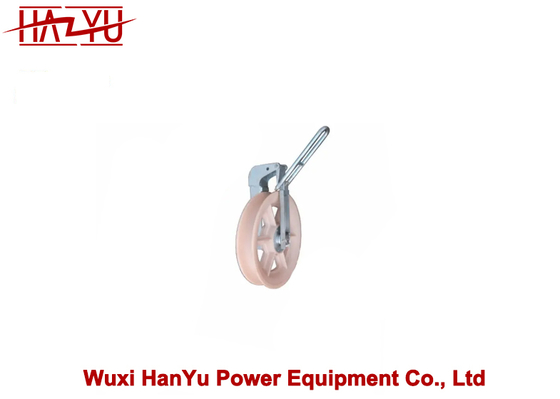

Stringing Pulley BSHDN508Z Aerial Helicopter Cable Stringing Pulley Block

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

BSHDN508Z

Type:

Aerial Helicopter Stringing Pulley

Wheel Size Outside Dia. X Width (mm):

508X75

Sheaves:

Application:

Power Line Construction

Highlight:

aerial helicopter cable stringing pulley

stringing pulley block for cable

BSHDN508Z stringing pulley with warranty

Product Description

Stringing Pulley BSHDN508Z Aerial Helicopter Cable Stringing Pulley Block

Model	Wheel size Outside Dia. x Width (mm)	Sheaves
BSHDN508Z	508X75 (508X100)	1
BSHSN508Z		3
BSHWN508Z		5
BSHDN660 Z	660X100 (660X110)	1
BSHSN660Z		3
BSHWN660Z		5
BSHDN822Z	822x110	1
BSHSN822Z		3
BSHWN822Z		5
BSHDN916Z	916x110	1
BSHSN916Z		3
BSHWN916Z		5

The helicopter hangs the guide rope through the helicopter pulley. The Aerial Helicopter Stringing Pulley of different specifications and sizes shall be selected according to different lines. The Aerial Helicopter Stringing Pulley can be divided into single sheave, three sheaves, five sheaves.

In the harsh environment such as mountains, valleys and rivers, it is not convenient to manually lay the guide rope on the ground, the helicopter can be used to pull the guide rope and directly hang it in the pulley groove of the Aerial Helicopter Stringing Pulley. Convenient for subsequent wire laying.

The guide rope enters the pulley groove through the guide rope guide arm, eccentric rotating door and other mechanisms in the Aerial Helicopter Stringing Pulley.

The Aerial Helicopter Stringing Pulley of different specifications and sizes shall be selected according to different lines. The Aerial Helicopter Stringing Pulley can be divided into single sheave, three sheaves, five sheaves. Material of pulley can be divided into MC nylon material, aluminum alloy material, nylon sheave coated rubber and aluminum sheave coated rubber. The intermediate sheave can also be steel sheave.

Features: With specially designed fly bar system and open door system to guide the pilot rope into the groove of center sheave, the running board can go through the sheaves easily.

Stringing Pulley BSHDN508Z Aerial Helicopter Cable Stringing Pulley Block 0
