7m-34m Guided Suspended Working Platform Suspended Wire Rope Platform
  • name
  • name

7m-34m Guided Suspended Working Platform Suspended Wire Rope Platform

MOQ: 20pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 5000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
PLA-01-0700
Type:
Working Platforms For Jumper Construction
GmbH Part:
77-1204
Working Platform Length(L) And Sections(m):
7m(3.5+3.5m)
A(mm):
350
B(mm):
85
C(mm):
446
Highlight:

34m Guided Suspended Working Platform

,

7m Guided Suspended Working Platform

,

8m Suspended Wire Rope Platform

Product Description

Suspension Platform PLA-01-0700 Working Platforms For Jumper Construction



Part GmbH part Working platform length(L) and sections(m) A(mm) B(mm) C(mm) Weight(kg)
PLA-01-0700 77-1204 7m(3.5+3.5m) 350 85 446 80
PLA-01-0800 77-1205 8m(4+4m) 350 85 446 88
PLA-01-1000 77-1206 10m(4+2+4m) 350 85 446 105
PLA-01-1200 77-1207 12m(4+4+4m) 350 85 446 116
PLA-01-1400 77-1208 14m(5+4+5m) 350 85 446 129
PLA-01-1600 77-1209 16m(4+4+4+4m) 350 85 446 144
PLA-01-1800 77-1210 18m(6+6+6m) 350 85 446 164
PLA-01-2000 77-1211 20m(5+5+5+5m) 450 85 550 200
PLA-01-2400 77-1212 24m(6+6+6+6m) 450 85 550 250
PLA-01-2600 77-1213 26m(5+5+6+5+5m) 450 85 550 265
PLA-01-3000 77-1215 30m(6+6+6+6+6m) 450 85 550 470
PLA-01-3400 77-1216 34m(4+5+5+6+5+5+4m) 450 85 550 515



These platforms provide linesmen a safe working area at Tension

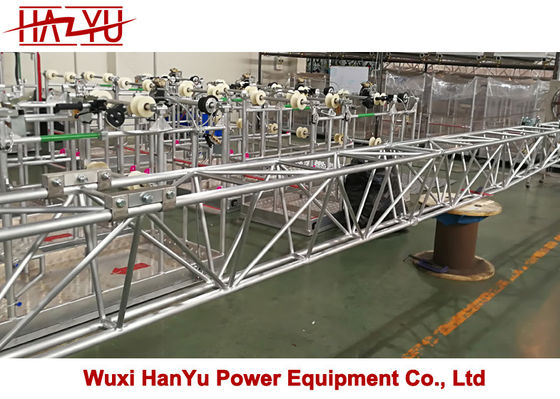

Towers particularly for the construction of conductor jumper between insulator chains. They consist of a tubular structure of welded aluminium pipes. In the centre they are equipped with a suspension device and at both ends anchoring points.



We particularly recommend to equip the platforms with the optionally available sheet metal stepping ground which increases safety of the linesmen between insulator chains. They significantly. Optionally available is consist of a tubular structure of furthermore a second anti-fall barrier



7m-34m Guided Suspended Working Platform Suspended Wire Rope Platform 0

Tags:

suspended wire rope platform,

guided suspended working platform,

suspended building platform
