Name: SWG-25 Hydraulic Pipe Bender Electric Bar Bender Overhead Line Stringing Tools
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: SWG-25
Availability: InStock

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	2000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

SWG-25

Type:

Hydraulic Pipe Bender

Output:

Stroke(mm):

120

Wall Thickness(mm):

1.5-5

Weight(kg):

Beding Angle(rad):

π/2≤a≤π

Highlight:

SWG-25 Hydraulic Pipe Bender

Hydraulic Electric Bar Bender

Product Description

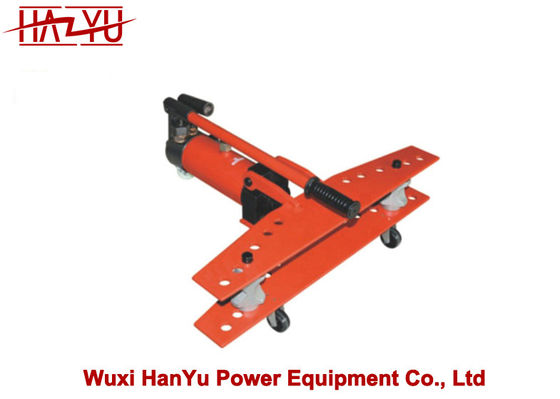

Overhead Line Stringing Tools SWG-25 Hydraulic Pipe Bender Electric Bar Bender

Hydraulic Pipe Bender
Uses: It is suitable for bending and forming of galvanized water pipes,thick steel pipes,conductor pipes and gas pipes. Explain:Type CPB need to be equipped with a hydraulic pump.
Model	SWG-25	SWG-1	SWG-2	SWG-3	SWG-4	SWG-255
Output	60	100	160	180	200	200
Stroke(mm)	120	160	230	320	380	380
Wall thickness(mm)	1.5-5	2-5	2.5-5	2.5-5	2.5-6	2.5-6
Weight(kg)	16	20	47.5	97	137	186
Beding angle(rad)	π/2≤a≤π	π/2≤a≤π	π/2≤a≤π	π/2≤a≤π	π/2≤a≤π	≤90°
Pipediameter(mm)	Φ10 Φ13 Φ16 Φ19 Φ22 Φ25	Φ13 Φ16 Φ19 Φ22 Φ28 Φ34	Φ22 Φ28 Φ34 Φ42 Φ48 Φ60	Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89	Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108	Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 Φ114

SWG-25 Hydraulic Pipe Bender Electric Bar Bender Overhead Line Stringing Tools 0
