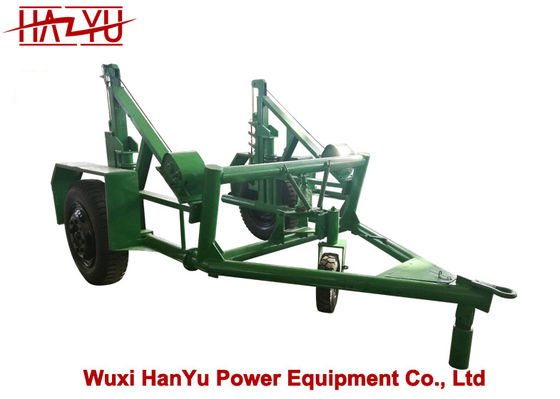

Name: 80kN Capacity Reel Carrier Trailer Overhead Line Stringing Equipment
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: DLG-8T
Availability: InStock

MOQ:	5set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	100sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

DLG-8T

Type:

TYDLG-8T Reel Carrier Trailer

Overall Dimensions:

4300×3200×2700mm

Reel Dimensions Width:

1800mm

Reel Dimensions Diameter:

3400mm

Weight:

2300kg

Max Capacity:

80kN

Highlight:

80kN Capacity Reel Carrier Trailer

80kN Reel Carrier Trailer

Reel Carrier Trailer Stringing Equipment

Product Description

Overhead Line Stringing Tools 80kN Capacity Reel Carrier Trailer

TYDLG Reel Carrier Trailer
Model	Max Capacity	Reel Dimensions(mm)			Overall dimensions	Weight
Model	(kN)	Diameter	Width	Axel diameter	(mm)	(kg)
DLG-3T	30	2400	1250	80	3800×2300×2200	900
DLG-5T	50	2800	1450	100	4000×2600×2500	1500
DLG-8T	80	3400	1800	120	4300×3200×2700	2300
DLG-10T	100	3600	2000	150	4600×3800×2900	3100
The reel carrier is made of welded steel with protective coating.
Two hydraulic jacks powered by a manual pumpare used to lift the reel.
one disc brakes acting on the reel shaft is designed to control the unwinding tension.
Special models with different characteristics can be designed on demand.
