50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter
  • name
  • name

50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter

MOQ: 5set
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 100sets/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
DLG-5T
Type:
TYDLG-5T Reel Carrier Trailer
Max Capacity:
50kN
Reel Dimensions Diameter:
2800mm
Reel Dimensions Width:
1450mm
Weight:
1500kg
Overall Dimensions:
4000×2600×2500mm
Highlight:

Stringing Tools Reel Carrier Trailer

,

100mm Axel Reel Carrier Trailer

,

50kN Reel Carrier Trailer

Product Description

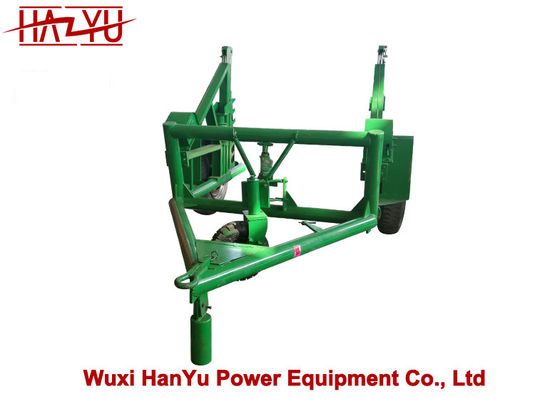

Overhead Line Stringing Tools Reel Carrier Trailer Axel Diameter 100mm



TYDLG Reel Carrier Trailer
The reel carrier is made of welded steel with protective coating. Two hydraulic jacks powered by a manual pumpare used to lift the reel. one disc brakes acting on the reel shaft is designed to control the unwinding tension.
Special models with different characteristics can be designed on demand.
Model

Max Capacity

(kN)

 Reel Dimensions(mm)

Overall dimensions

(mm)

Weight

(kg)
Diameter Width Axel diameter
DLG-3T 30 2400 1250 80 3800×2300×2200 900
DLG-5T 50 2800 1450 100 4000×2600×2500 1500
DLG-8T 80 3400 1800 120 4300×3200×2700 2300
DLG-10T 100 3600 2000 150 4600×3800×2900 3100



50kN Stringing Tools Reel Carrier Trailer 100mm Axel Diameter 0
