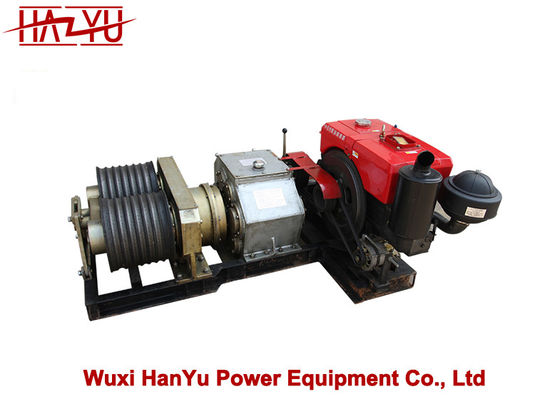

Name: Cableway Hydraulic Cable Puller 30kw Stringing Tools TYDJ-80
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TYDJ-80
Availability: InStock

MOQ:	2set
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	50sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TYDJ-80

Type:

TYDJ Cableway Puller

Rated Power:

30kw

Rated Speed (round/min):

2600

Weight:

885kgs

Meas.:

1730x1500x1050mm

Pull Force:

84kN

Highlight:

Cableway Hydraulic Cable Puller

Hydraulic Cable Puller 30kw

Stringing Tools Hydraulic Cable Puller

Product Description

Overhead Line Stringing Tools TYDJ-80 Cableway Puller 30kw Rated Power

TYDJ Cableway puller
Cableway puller is a kind of engineering machinery specially designed to the requirements of the cableway transportation construction. It is a kind of ideal puller equipment for overhead transportation in the mountainous areas without electricity.
Model	Gear		Rope speed (meter/min)	Pull force (KN)	Rated power	Rated speed (round/min)	Weight (kgs)	Meas.(mm)
TYDJ-80	Drive	I	15	84	30kw	2600	885	1730x1500x1050
		II	37	35
		III	51	25
		IV	123	10
	Reverse	I	31	40
	Reverse	II	103	12
Diesel engine water cooled; Electric start; Wheel base diameter: 326mm; Groove no.: 6; Applicable steel rope diameter 16~18mm
TYDJ-50	Drive	I	18	34.4	27kw	2200	938	1450x1300x800
		II	31	31
		III	59	15
	Reverse	I	18	34.4
		II	31	31
		III	59	15
Diesel engine water cooled; Electric start; Wheel base diameter: 300mm; Groove no.: 6; Applicable steel rope diameter 16~18mm

Cableway Hydraulic Cable Puller 30kw Stringing Tools TYDJ-80 0
