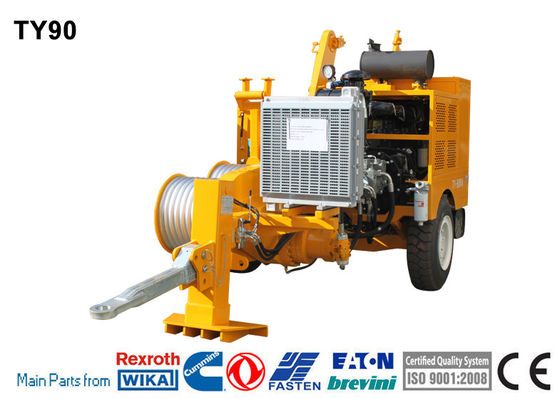

Name: 90kN Hydraulic Cable Puller Stinging Equipment Hydraulic Wire Puller
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90

Type:

Stinging Equipment 90kN Hydraulic Puller

Max Intermittent Pull:

90kN

Pull At Max Speed:

40kN

Total Weight:

4680kg

Cooling System:

Water

Speed Reduce:

German Rexroth / Italy Bonfiglioli

Highlight:

90kN Hydraulic Cable Puller

Hydraulic Cable Puller Stinging Equipment

90kN Hydraulic Wire Puller

Product Description

Stringing Equipment Max Intermittent Pull 90kN Hydraulic Cable Puller

Product Description
This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions.
This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Product Parameter
Characteristics
Bull-wheel diameter		540mm
Groove number		8
Max rope diameter		21mm
Max diameter of rope reel		1400mm
Total weight		4680kg
Overall dimension (lengthwidthheight)		4000×2200×2100mm
Performance
Max intermittent pull		90kN
Max continuous pull		80kN
Speed at max pull		2.5km/h
Max speed		5km/h
Pull at max speed		40kN
Engine
Diesel		118kw(158hp)
Cooling system		water
Electrical system		24V
Main configuration
Engine		Cummins
Hydraulic pump		German Rexroth
Main motor		German Rexroth
Speed reducer		German Rexroth / Italy Bonfiglioli
Tail bracket hoisting motor		American Eton
Hydraulic meter		German WIKA
Operating handle		German Rexroth
Diesel

Additional Devices
Lighting system for the trailer Trailer for towing at max speed of 15 km/h Hydraulic rope clamp for reel change Digital speed and meter counter (extra charge) Swivel guide rope roller Extra shaft

Configuration
Hydraulic oil cooling system Grounding connection point On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 Control instruments for hydraulic system and diesel engine Hydraulic front stabilizer Hydraulic dynamometer with set-point and automatic control of maximum pull
