Name: Stringing Equipment Hydraulic Puller Tensioner For Powerline Construction
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90

Type:

Hydraulic Puller For Powerline Construcion

Max Intermittent Pull:

90kN

Engine:

Cummins

Tail Bracket Hoisting Motor:

American Eton

Max Continuous Pull:

80kN

Pull At Max Speed:

40kN

Highlight:

Stringing Equipment Hydraulic Puller Tensioner

Powerline Hydraulic Puller Tensioner

Hydraulic Tensioner Stringing Equipment

Product Description

Overhead Line Stringing Tools Hydraulic Puller For Powerline Construcion

Product Parameter
Bull-wheel diameter	540mm
Groove number	8
Max rope diameter	21mm
Max diameter of rope reel	1400mm
Total weight	4680kg
Overall dimension (lengthwidthheight)	4000×2200×2100mm
Max intermittent pull	90kN
Max continuous pull	80kN
Speed at max pull	2.5km/h
Max speed	5km/h
Pull at max speed	40kN
Engine	Cummins
Hydraulic pump	German Rexroth
Main motor	German Rexroth
Speed reducer	German Rexroth / Italy Bonfiglioli
Tail bracket hoisting motor	American Eton
Hydraulic meter	German WIKA
Operating handle	German Rexroth
Diesel	118kw(158hp)
Cooling system	water
Electrical system	24V

Hydraulic Transmission	Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Additional Devices	Lighting system for the trailer Hydraulic rope clamp for reel change Swivel guide rope roller Trailer for towing at max speed of 15 km/h Extra shaft Digital speed and meter counter (extra charge)
Configuration	Hydraulic dynamometer with set-point and automatic control of maximum pull Hydraulic oil cooling system Control instruments for hydraulic system and diesel engine On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 Hydraulic front stabilizer Grounding connection point

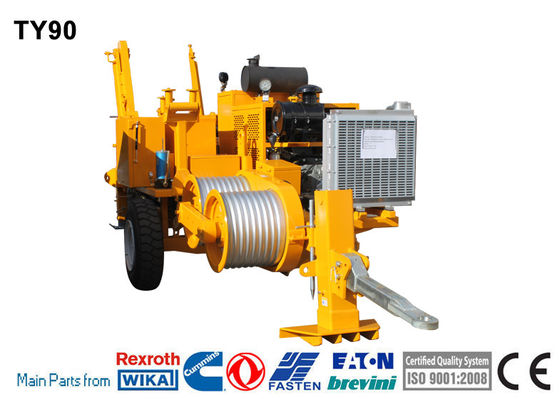

Stringing Equipment Hydraulic Puller Tensioner For Powerline Construction 0
