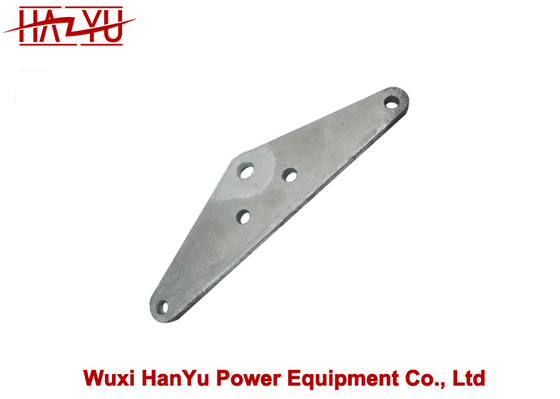

Yoke Plate Insulator Strings Plate 100kN Strain Carrier 16mm

MOQ:	100pieces
Price:	Negotiable
Standard Packaging:	case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	100000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

P-L-1040

Type:

Yoke Plate Insulator Strings Plate

Dimensions B:

Dimensions B1:

Dimensions H:

Rated Failure Load:

100kn

Weight:

4.43kg

Highlight:

16mm yoke plate insulator

100kN strain carrier plate

powerline yoke insulator strings

Product Description

Powerline Tools Yoke Plate Insulator Strings Plate Strain Carrier

Yoke Plate is a connection fitting used for the parallel assembly of double insulator strings and multiple insulator strings.
Usage scenarios: Transmission line system, communication system
Technical features: It is cut from a steel plate and bears a mechanical load.
Product advantages:

The surface is smooth and free of burrs;
The yoke plate uses hot-dip galvanizing to prevent corrosion;
The mechanical strength of the yoke plate is high.

Catalog No.	Dimensions (mm)						Rated Failure Load (kN)	Weight (kg)
Catalog No.	b	b1	h	Φ1	Φ2	L	Rated Failure Load (kN)	Weight (kg)
P-L-1040	16	16	70	20	18	400	100	4.43
P-L-1240	16	16	70	24	18	400	120	4.66
P-L-1640	18	18	100	26	10	400	160	5.80
P-L-2140	16	26	100	30	20	400	200	6.90
P-L-2052	16	26	100	30	26	520	200	8.00
P-L-2055	16	26	200	30	24	550	200	11.80
P-L-2540	16	30	110	33	24	400	250	9.00
P-L-3040	18	32	110	39	26	400	300	10.00
P-L-4255	24	38	250	45	30	550	420	24.40
P-L-5040	30	38	110	45	33	400	500	14.80
P-L-6045	30	42	200	51	39	450	600	25.50
P-L-6050	32	42	250	51	39	500	600	23.30

Yoke Plate Insulator Strings Plate 100kN Strain Carrier 16mm 0
