Transmission Line Stringing Tools Max Speed 5km/H Hydraulic Cable Tensioner
  • name
  • name

Transmission Line Stringing Tools Max Speed 5km/H Hydraulic Cable Tensioner

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Container
Delivery Period: 20-45Days
Payment Method: L/C,T/T
Supply Capacity: 10 Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001, CE
Model Number
TY1x30D-1800
Type:
TY1x30D-1800 Hydraulic Cable Tensioner
Max Continuous Tension:
30kN
Single Cylinder Diesel Engine:
18kw(25hp)
Electrical System:
12V
Max Conductor Diameter:
40mm
Max Reverse Pulling Force:
20kN
Speed At Max Tension:
2.5km/h
Overall Dimension (length*width*height):
5000*2000*2600mm
Highlight:

hydraulic transmission line stringing tools

,

hydraulic transmission line stringing equipment

,

20kn transmission line stringing tools

Product Description

Transmission Line Stringing Tools Max Speed 5km/H Hydraulic Cable Tensioner

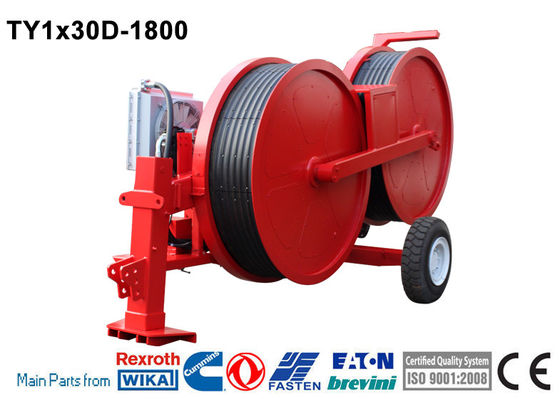

TY1x30D-1800 Hydraulic Tensioner with diesel engine

  • The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
  • The hydraulic power unit provides the traction of conductors at both positive and negative directions.
  • The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.



Performance

  1. Max continuous tension: 30kN
  2. Speed at max tension: 2.5km/h
  3. Max speed: 5km/h
  4. Pull at max speed: 15kN
  5. Max reverse pulling force: 20kN

Characteristics

  1. Bull-wheel diameter: 1800mm
  2. Max conductor diameter: 40mm
  3. Groove number: 5
  4. Total weight: 4600kg
  5. Overall dimension (length*width*height): 5000*2000*2600mm

Engine

  1. Single cylinder diesel engine 18kw(25hp)
  2. Electrical system 12V

Main configuration

  1. Engine: Changchai China
  2. Hydraulic pump: German Concentric
  3. Main motor: French Leduc
  4. speed reducer: German Rexroth / Italy Bonfiglioli
  5. Hydraulic valve: German Rexroth
  6. Hydraulic meter: German WIKA

Hydraulic Transmission

  1. The machine can realize step less speed
  2. The machine is provided with tension presetting system

Additional Devices

  1. Air brake system for the trailer (extra charge)
  2. Hydraulic conductor clamps for drum change operations (extra charge)
  3. Swivel guide rope roller
  4. Trailer for towing at max speed of 15 km/h

Configuration

  1. Hydraulic dynamometers
  2. Hydraulic oil cooling system
  3. Grounding connection point



Transmission Line Stringing Tools Max Speed 5km/H Hydraulic Cable Tensioner 0
