Name: Transmission Line Stringing Equipment Hydraulic Pulling Cable Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY1x30D-1800
Availability: InStock

MOQ:	1set
Price:	USD23,000.00-25,000.00/set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY1x30D-1800

Type:

Hydraulic Pulling Cable Tensioner

Electrical System:

12V

Single Cylinder Diesel Engine:

18kw(25hp)

Max Continuous Tension:

30kN

Overall Dimension (length*width*height):

5000*2000*2600mm

Total Weight:

4600kg

Highlight:

hydraulic cable tensioner for transmission lines

transmission line stringing equipment with warranty

pulling cable tensioner for power lines

Product Description

Transmission Line Stringing Equipment Hydraulic Pulling Cable Tensioner

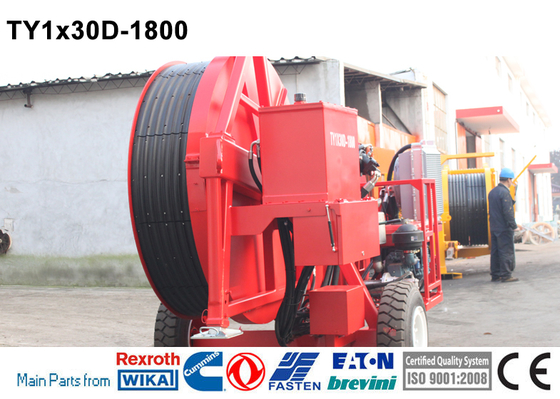

TY1x30D-1800 Hydraulic Tensioner	The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
	The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.
	The hydraulic power unit provides the traction of conductors at both positive and negative directions.

Characteristics	Bull-wheel diameter: 1800mm
	Groove number: 5
	Max conductor diameter: 40mm
	Overall dimension (lengthwidthheight): 500020002600mm
	Total weight: 4600kg

Performance	Max continuous tension: 30kN
	Max speed: 5km/h
	Max reverse pulling force: 20kN
	Speed at max tension: 2.5km/h
	Pull at max speed: 15kN

Main configuration	Engine: Changchai China
	Main motor: French Leduc
	Hydraulic valve: German Rexroth
	Hydraulic pump: German Concentric
	Hydraulic meter: German WIKA
	Speed reducer: German Rexroth / Italy Bonfiglioli

Engine	Electrical system 12V
	Single cylinder diesel engine 18kw(25hp)

Hydraulic Transmission	The machine is provided with tension presetting system
	The machine can realize step less speed

Configuration	Hydraulic dynamometers
	Grounding connection point
	Hydraulic oil cooling system

Additional Devices	Air brake system for the trailer (extra charge)
	Swivel guide rope roller
	Trailer for towing at max speed of 15 km/h
	Hydraulic conductor clamps for drum change operations (extra charge)
