Transmission Line Stringing Equipment Hydraulic Overhead Transmission Tensioner
  • name
  • name

Transmission Line Stringing Equipment Hydraulic Overhead Transmission Tensioner

MOQ: 1set
Price: USD48,500.00-51,000.00/Set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x35
Type:
Hydraulic Overhead Transmission Tensioner
Max Intermittent Tension:
2x40kN
Max Continuous Tension:
2x35kN
Max Reverse Pulling Speed:
5km/h
Max Reverse Pulling Force:
2x30kN
Pull At Max Speed:
2x20kN
Product Description

Transmission Line Stringing Equipment Hydraulic Overhead Transmission Tensioner



Performance
  1. Max intermittent tension: 2x40kN
  2. Max continuous tension: 2x35kN
  3. Speed at max tension: 2.5km/h
  4. Max speed: 5km/h
  5. Pull at max speed: 2x20kN
  6. Max reverse pulling force: 2x30kN
  7. Max reverse pulling speed: 5km/h



Characteristics
  1. Bull-wheel diameter: 1300mm
  2. Max conductor diameter: 40mm
  3. Groove number: 2x5
  4. Total weight: 4500kg
  5. Overall dimension (length*width*height): 4300×2250×2700mm

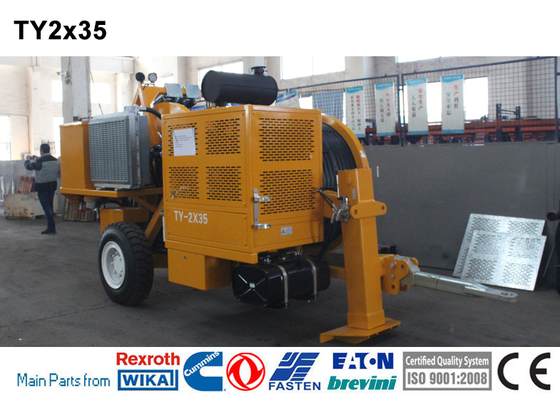

TY2x35 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Engine
  1. Diesel: 77kw(103hp)
  2. Cooling system: water
  3. Electrical system: 24V



Main configuration
  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth/Dnish Danfoss
  3. Main motor: German Rexroth/French Leduc
  4. Speed reducer: German Rexroth / Italy Bonfiglioli
  5. Main hydraulic valves: USA Sun / Italy ATOS



Additional Devices
  • Lighting system for the trailer
  • Air brake system for the trailer (extra charge)
  • 2 hydraulic conductor clamps for drum change operations (extra charge)
  • Swivel guide rope roller



Configuration
  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor



Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.



Transmission Line Stringing Equipment Hydraulic Overhead Transmission Tensioner 0
