Name: Transmission Line Stringing Equipment BJJM5C Wire Rope Pulling Winch
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: BJJM5Q
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	100sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

BJJM5Q

Weight:

220kg

Pulling Speed:

5m/min

Usage:

Power Line Construction

Type:

Wire Rope Pulling Winch

Pulling Force:

50kn

Power:

Diesel Engine 9kw

Highlight:

Transmission line wire rope winch

BJJM5C pulling winch equipment

Stringing equipment with wire rope

Product Description

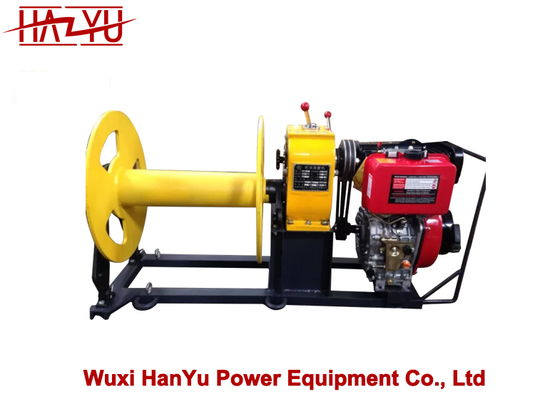

Transmission Line Stringing Equipment BJJM5C Wire Rope Pulling Winch

It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable. The winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. It can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages.

Model	Gear	Pulling force(KN)	Pulling speed(m/min)	Power	Weight (kg)
BJJM5Q	Slow	50	5	HONDA GASOLINE GX390 13HP	190
	Fast	30	11
	Reverse	-	3.2
BJJM5C	Slow	50	5	Diesel engine 9kw	220
	Fast	30	11
	Reverse	-	3.2

Features: 1. Speedy and Efficient. 2. Safe and Reliable. 3. Compact structure. 4. Small volume. 5. Light in weight. 6. The wire rope can be directly wound on the winch.

Operation methods Before turning on the machine, you must turn on the clutch first and put the racker for crosspiece - changing in the zero position. When moving the crosspiece, you should be quick. Otherwise the brake won’t work well. When turning on the machine, you shouldn’t work too fiercely. When changing the crosspiece position, you must turn on the clutch. Otherwise the gear will be damaged. After that, you should check whether the changing job is well done. Make sure you haven’t changed two crosspieces in one time. If there is any difficulty during the process of changing crosspiece position, you shouldn’t try to complete the job forcefully. Instead you should use the hand installment to help you complete the job. Concrete procedure: using the spanner to move the hand installment to a position with a certain angle, then you can change the crosspiece position smoothly.
