Name: Steel Jaw Turnbuckle Take Up 3/8" Diameter 6" Take-up
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: P-US-T
Availability: InStock

MOQ:	100pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	100000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

P-US-T

Type:

Jaw Turnbuckle Take Up

Pin Diameter Min:

5/16"

Units:

US Type Turnbuckle

Take-up:

Diameter:

3/8"

Eye Outside Diameter:

1-17/32"

Highlight:

steel jaw turnbuckle 3/8 diameter

6 inch take-up turnbuckle

powerline turnbuckle with steel jaw

Product Description

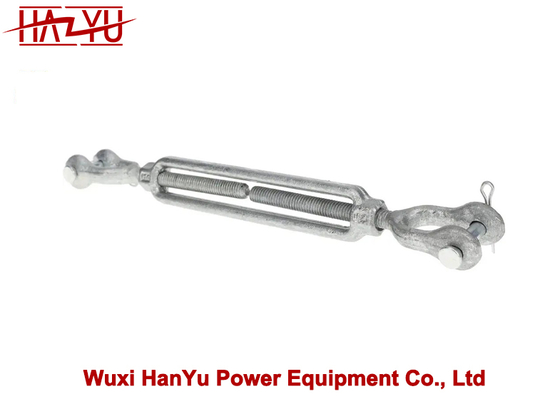

Powerline Tools P-US-T Steel Plain Finish Jaw Turnbuckle Take Up

Product details
Model	P-US-T
Units	US Type Turnbuckle
Category	Turnbuckles An internally threaded sleeve intended for assembly with a threaded stud, eye, hook or jaw at each end used for applying and regulating tension.
Subcategory	Forged jaw & eye Jaw end fittings consist of a jaw, clevis pin, and cotter pin to attach to connecting components that cannot be opened and eye end fittings are used with connecting components that can be opened and attached to the eye.
Material	Steel A low carbon steel for general use.
Finish	Plain Unplated finish.
Domestically produced	Yes
Overall length	11-7/8"
Diameter	3/8"
Take-up	6"
Thread count	16
Eye inside diameter	51/64"
Eye outside diameter	1-17/32"
Jaw opening width	1/2"
Pin diameter min	5/16"
Jaw inside length	7/8"
Rated Capacity	1,040lbs

Take up slack with a Crosby HG228 jaw/jaw Turnbuckles are manufactured with the end fittings quenched and tempered. The jaw allows connection to rigging hardware that can not be opened, an eye bolt for instance. Used to apply tension to wire ropes such as guy lines, median barriers, architectural wire ropes or adjust the length of sling legs in multiple leg lifting applications. The bodies are heat treated by normalizing, the finish is then hot dip galvanized for long term corrosion resistance and long service life. Used for for Lifting, Holding And Tensioning the HG228 range meets or exceeds all requirements of ASME B30.26.Recommended for a straight or in-line pull only. We don't know when or if this item will be back in stock. Crosby products meet or exceed all requirements of ASME B30.26 Hot Dip galvanized steel Turnbuckles recommended for straight or in-line pull only
