Name: Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: BZZCS350
Availability: InStock

MOQ:	10set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000sets/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

BZZCS350

Type:

Self-Moving Traction Machine

Block Passed Diameter Range(mm):

φ9-φ13

Maximum Creeping Angle (°):

Driving Dynamo Type:

Driving Dynamo Type

Remote Control Linear Distance(m):

300~500

Dimension (mm):

422x480x758

Highlight:

OPGW construction traction machine

self-moving powerline tools

BZZCS350 traction machine with warranty

Product Description

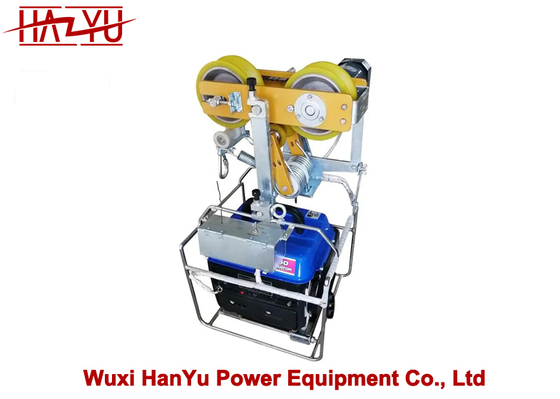

Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine

Model	BZZCS350
Block passed diameter range(mm)	φ9-φ13
Maximum creeping angle (°)	31
Gasoline engine	YAMAHAET950
Driving dynamo type	100YYJ140-3(140W)
Remote control linear distance(m)	300~500
Dimension (mm)	422x480x758
Running speed (m/min)	17
Horizontal pull (N)	350
Weight (kg)	46.5

Description:

The self moving traction machine is used to deliver guide rope and double pulley rollers from one steel tower to another.

It is always used to spread the optical power ground wire abbreviated as OPGW. Also, it is able to replace the old conductor.

Advantages:

1.Self driving by gasoline engine

2.Electric motor system.

3. Automatic brake system for emergency stop

4. Remote control system for controlling the machine on overhead line.

5.Special Mechanical system for preventing reverse driving of machine.

6.Easy operation

Remarks:

We have developed whole set of machines and tools for OPGW line installation.

Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine 0
