Name: Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90
Availability: InStock

MOQ:	1set
Price:	USD50,000.00-53,000.00/Set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90

Type:

Overhead Transmission Hydraulic Laying Puller

Total Weight:

4680kg

Max Intermittent Pull:

90kN

Max Continuous Pull:

80kN

Max Speed:

5km/h

Cooling System:

Water

Product Description

Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN

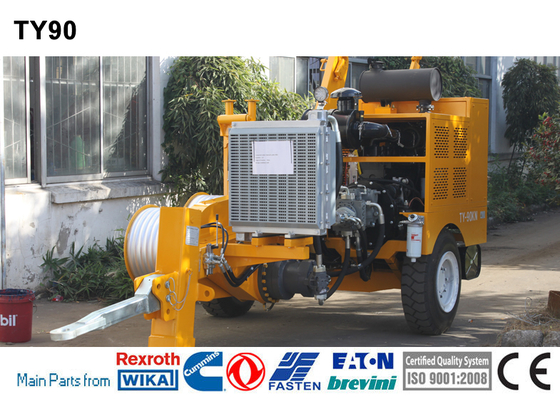

TY90 Hydraulic Puller

This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
Besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Performance

Max continuous pull: 80kN
Max intermittent pull: 90kN
Max speed: 5km/h
Pull at max speed: 40kN
Speed at max pull: 2.5km/h

Characteristics

Total weight: 4680kg
Overall dimension (length*width*height): 4000×2200×2100mm
Max rope diameter: 21mm
Bull-wheel diameter: 540mm
Groove number: 8
Max diameter of rope reel: 1400mm

Main configuration

Engine: Cummins
Tail bracket hoisting motor: American Eton
Hydraulic pump: German Rexroth
Speed reducer: German Rexroth / Italy Bonfiglioli
Hydraulic meter: German WIKA
Operating handle: German Rexroth
Main motor: German Rexroth

Engine

Electrical system: 24V
Diesel: 118kw(158hp)
Cooling system: water

Additional Devices

Lighting system for the trailer
Extra shaft
Hydraulic rope clamp for reel change
Swivel guide rope roller
Digital speed and meter counter (extra charge)
Trailer for towing at max speed of 15 km/h

Configuration

Hydraulic oil cooling system
Hydraulic dynamometer with set-point and automatic control of maximum pull
Grounding connection point
Hydraulic front stabilizer
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions.
This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN 0
