Name: Overhead Line Stringing Equipment Hydraulic Stringing Machine Tool
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90
Availability: InStock

MOQ:	1set
Price:	USD50,000.00-53,000.00/Set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90

Type:

Hydraulic Stringing Machine Tool

Max Intermittent Pull:

90kN

Bull-wheel Diameter:

540mm

Max Diameter Of Rope Reel:

1400mm

Diesel:

118kw(158hp)

Overall Dimension (length*width*height):

4000×2200×2100mm

Product Description

Overhead Line Stringing Equipment Hydraulic Stringing Machine Tool

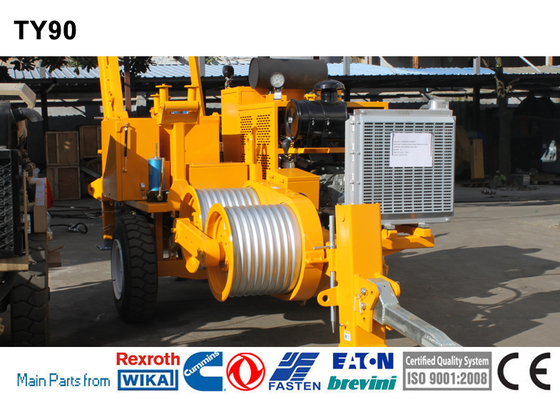

TY90 Hydraulic Puller
This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.
Characteristics
Bull-wheel diameter	540mm
Groove number	8
Max rope diameter	21mm
Max diameter of rope reel	1400mm
Total weight	4680kg
Overall dimension (lengthwidthheight)	4000×2200×2100mm
Performance
Max intermittent pull	90kN
Max continuous pull	80kN
Speed at max pull	2.5km/h
Max speed	5km/h
Pull at max speed	40kN
Engine
Diesel	118kw(158hp)
Cooling system	water
Electrical system	24V
Main configuration
Engine	Cummins
Hydraulic pump	German Rexroth
Main motor	German Rexroth
Speed reducer	German Rexroth / Italy Bonfiglioli
Tail bracket hoisting motor	American Eton
Hydraulic meter	German WIKA
Operating handle	German Rexroth
Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions.
This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Configuration
Hydraulic oil cooling system
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic dynamometer with set-point and automatic control of maximum pull
Grounding connection point
Control instruments for hydraulic system and diesel engine
Hydraulic front stabilizer
Additional Devices
Hydraulic rope clamp for reel change
Trailer for towing at max speed of 15 km/h
Digital speed and meter counter (extra charge)
Lighting system for the trailer
Swivel guide rope roller
Extra shaft

Overhead Line Stringing Equipment Hydraulic Stringing Machine Tool 0
