Name: Overhead Line Stringing Equipment Diesel 118kw(158hp) Hydraulic Cable Puller
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90
Availability: InStock

MOQ:	1set
Price:	USD50,000.00-53,000.00/Set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90

Type:

Stringing Equipment Hydraulic Cable Puller

Max Intermittent Pull:

90kN

Max Diameter Of Rope Reel:

1400mm

Overall Dimension (length*width*height):

4000×2200×2100mm

Cooling System:

Water

Diesel:

118kw(158hp)

Product Description

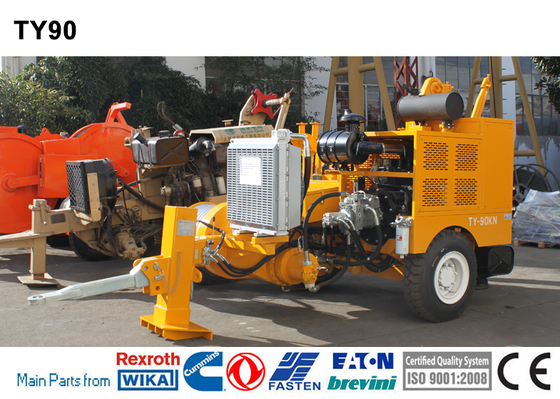

Overhead Line Stringing Equipment Diesel 118kw(158hp) Hydraulic Cable Puller

TY90 Hydraulic Puller	This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
	besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.
Characteristics	Groove number	8
	Max diameter of rope reel	1400mm
	Max rope diameter	21mm
	Bull-wheel diameter	540mm
	Total weight	4680kg
	Overall dimension (lengthwidthheight)	4000×2200×2100mm
Performance	Max intermittent pull	90kN
	Speed at max pull	2.5km/h
	Max continuous pull	80kN
	Pull at max speed	40kN
	Max speed	5km/h
Engine	Diesel	118kw(158hp)
	Cooling system	water
	Electrical system	24V
Main configuration	Engine	Cummins
	Hydraulic pump	German Rexroth
	Speed reducer	German Rexroth / Italy Bonfiglioli
	Main motor	German Rexroth
	Hydraulic meter	German WIKA
	Tail bracket hoisting motor	American Eton
	Operating handle	German Rexroth
Hydraulic Transmission	Closed hydraulic circuit for step less speed variation in both rotating directions.
	This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Configuration	Hydraulic oil cooling system
	Hydraulic dynamometer with set-point and automatic control of maximum pull
	On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
	Control instruments for hydraulic system and diesel engine
	Grounding connection point
	Hydraulic front stabilizer
Additional Devices	Hydraulic rope clamp for reel change
	Swivel guide rope roller
	Trailer for towing at max speed of 15 km/h
	Lighting system for the trailer
	Digital speed and meter counter (extra charge)
	Extra shaft

Overhead Line Stringing Equipment Diesel 118kw(158hp) Hydraulic Cable Puller 0
