Hydraulic Pulling Cable Tensioner Transmission Line Stringing Equipment
  • name
  • name

Hydraulic Pulling Cable Tensioner Transmission Line Stringing Equipment

MOQ: 1set
Price: USD48,500.00-51,000.00/Set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY2x35
Type:
Hydraulic Pulling Cable Tensioner
Max Continuous Tension:
2x35kN
Groove Number:
2x5
Speed At Max Tension:
2.5km/h
Bull-wheel Diameter:
1300mm
Total Weight:
4500kg
Product Description

Hydraulic Pulling Cable Tensioner Transmission Line Stringing Equipment

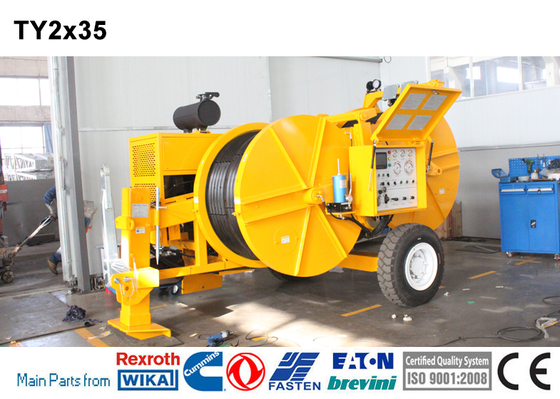

TY2x35 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics

Bull-wheel diameter: 1300mm

Max conductor diameter: 40mm

Groove number: 2x5

Total weight: 4500kg

Overall dimension (length*width*height): 4300×2250×2700mm
Main configuration

Engine: Cummins

Speed reducer: German Rexroth / Italy Bonfiglioli

Hydraulic pump: German Rexroth/Dnish Danfoss

Main hydraulic valves: USA Sun / Italy ATOS

Main motor: German Rexroth/French Leduc
Performance

Max intermittent tension: 2x40kN

Max continuous tension: 2x35kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 2x20kN

Max reverse pulling force: 2x30kN

Max reverse pulling speed: 5km/h
Engine
Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V
Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.
Additional Devices
  • Lighting system for the trailer
  • Air brake system for the trailer (extra charge)
  • 2 hydraulic conductor clamps for drum change operations (extra charge)
  • Swivel guide rope roller
Configuration
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
  • Grounding connection point
  • Hydraulic dynamometers



Hydraulic Pulling Cable Tensioner Transmission Line Stringing Equipment 0
