Transmission line and Substation system Conductor Type: AAC-All Aluminum Conductors AAAC -All Aluminum Alloy Conductors ACSR- Aluminum Conductors Steel Reinforced ACSR/AW -Aluminum Conductors Aluminum Clad Steel Reinforced ACAR-All Aluminum Conductor Alloy Reinforced AACSR-Aluminum Alloy Conductors Steel Reinforced GSW-Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand ACS-aluminum-clad steel conductors
Code	Structure			Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	Curent capacity
	Al	Steel		Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	TACIR	ZTACIR
	Nos/mm			mm2	mm	kN	2/km	Kg/km	A
160/40	18/337		7/2.65	199.16	17.04	65.06	0.1759	730	71	957
200/45	17/387		7/285	244.62	18.87	76.87	0.1412	883	890	1105
200/50	17/387		7/295	24781	19.01	80.39	0.1409	906	892	1110
250/45	18/420		7/285	294.04	20.64	8264	0.1141	1019	1017	1268
250/40	18/4.13		7/275	290.96	20.51	8112	0.1143	996	1014	1264
240/55	18/4.13		7/3.20	29743	20.82	9312	0.1169	1083	1007	1138
240/50	18/471		7/3.00	290.62	20.55	88.13	0.1157	1032	1000	1131
315/55	18/471		7/3.20	396.92	2315	104.06	0.0907	1266	1182	1479
315/50	18/471		7/3.00	36310	2291	97.20	0.0910	1232	1176	1471
330/60	18/481		7/330	386.95	2368	10970	0.0869	1329	1216	1522
350/55	20/471		7/3.20	404.77	2419	10933	0.0819	1379	1262	1580
Technical details Invar Conductor Invar Conductor made is a kind of special overhead conductor stranded with high-strength aluminum-clad invar core and super thermal resistant aluminum alloy wire. It takes advantage of the low linear expansion coefficient of invar material to make "low sag" and uses a thermal resistant aluminum alloy to have " large-capacity", making full use of original transmission line and tower resources and saving space. It has the feature of doubling capacity with the same diameter and the same sag, which can ensure power transmission at peak season.
Characteristics 2 times current carrying capacity without increasing sag. More economical for fittings. Easier installation than ACCC Conductor. More reliable operation experience. In compliance with or exceeding the industry’s most stringent requirements, including: IEC 62004 IEC 61089 IEC 62219 Q/320623-AP25
Applications Reconstruction of old transmission lines. Capacity increasing transmission line.

ACSR Transmission Line Conductor 200/45 18.87mm 76.87kN 0

Tags:

Transmission Line Stringing Tools,

stringing tools for transmission lines,

transmission stringing equipment

70kN 80kN Cable Hydraulic Cutter Hydraulic Steel Cable Cutter

Contact Now

2x40kN Hydraulic Wire Tensioner Cummins Hydraulic Cable Tensioner

Contact Now

TY2x35 2x35kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment

Contact Now

TYCVI Hydraulic Drum Elevator Stringing Tools For Transmission Lines

Contact Now

Insulated Wire Strippers Middle Stripping Cable Stripper Wire Peeling

Contact Now

Waterproof Canvas Waist Tool Bag For Electrician Tool Bag Waist Belt

Contact Now

SCD Conductor Cable Length Measurement Φ28mm Wire Length Measuring Meter

Contact Now

150kg Concrete Pole Climbing Shoes 8m-10m Transmission Line Stringing Equipment

Contact Now

SYD-100 100kN Transmission Line Stringing Tools High Altitude Crimping Tools

Contact Now

Safety Falling Protector 23kN Anti Fall Device Stainless Steel Two Point Fixed

Contact Now

TY2x35 2x35kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment

Contact Now

PRODUCTS DETAILS

Products

Transmission Line Stringing Equipment

Overhead Line Stringing Equipment

Hydraulic Puller Tensioner

Anti Twisting Steel Wire Rope

Lineman Tools

Powerline Tools

Stringing Pulley

Suspension Ladder

Suspension Platform

Underground Cable Pulling Tools

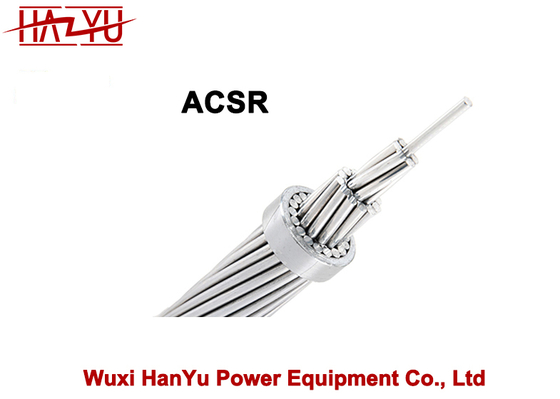

ACSR Transmission Line Conductor 200/45 18.87mm 76.87kN

MOQ:	100pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	100000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Type:

Conductors Steel Reinforced

Areas:

244.62mm2

Breaking Load:

76.87kn

Weight:

883kg

Code:

200/45

Diameter:

18.87mm

Minimum Order Quantity:

100pieces

Price:

Negotiable

Packaging Details:

Container

Delivery Time:

15-35days

Payment Terms:

L/C, T/T

Supply Ability:

100000pieces/month.

Highlight

ACSR transmission line conductor 200/45

ACSR conductor 18.87mm diameter

transmission line conductor 76.87kN strength

Product Description

Transmission Line Stringing Equipment ACSR- Aluminum Conductors Steel Reinforced

Transmission line and Substation system Conductor Type: AAC-All Aluminum Conductors AAAC -All Aluminum Alloy Conductors ACSR- Aluminum Conductors Steel Reinforced ACSR/AW -Aluminum Conductors Aluminum Clad Steel Reinforced ACAR-All Aluminum Conductor Alloy Reinforced AACSR-Aluminum Alloy Conductors Steel Reinforced GSW-Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand ACS-aluminum-clad steel conductors
Code	Structure			Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	Curent capacity
	Al	Steel		Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	TACIR	ZTACIR
	Nos/mm			mm2	mm	kN	2/km	Kg/km	A
160/40	18/337		7/2.65	199.16	17.04	65.06	0.1759	730	71	957
200/45	17/387		7/285	244.62	18.87	76.87	0.1412	883	890	1105
200/50	17/387		7/295	24781	19.01	80.39	0.1409	906	892	1110
250/45	18/420		7/285	294.04	20.64	8264	0.1141	1019	1017	1268
250/40	18/4.13		7/275	290.96	20.51	8112	0.1143	996	1014	1264
240/55	18/4.13		7/3.20	29743	20.82	9312	0.1169	1083	1007	1138
240/50	18/471		7/3.00	290.62	20.55	88.13	0.1157	1032	1000	1131
315/55	18/471		7/3.20	396.92	2315	104.06	0.0907	1266	1182	1479
315/50	18/471		7/3.00	36310	2291	97.20	0.0910	1232	1176	1471
330/60	18/481		7/330	386.95	2368	10970	0.0869	1329	1216	1522
350/55	20/471		7/3.20	404.77	2419	10933	0.0819	1379	1262	1580
Technical details Invar Conductor Invar Conductor made is a kind of special overhead conductor stranded with high-strength aluminum-clad invar core and super thermal resistant aluminum alloy wire. It takes advantage of the low linear expansion coefficient of invar material to make "low sag" and uses a thermal resistant aluminum alloy to have " large-capacity", making full use of original transmission line and tower resources and saving space. It has the feature of doubling capacity with the same diameter and the same sag, which can ensure power transmission at peak season.
Characteristics 2 times current carrying capacity without increasing sag. More economical for fittings. Easier installation than ACCC Conductor. More reliable operation experience. In compliance with or exceeding the industry’s most stringent requirements, including: IEC 62004 IEC 61089 IEC 62219 Q/320623-AP25
Applications Reconstruction of old transmission lines. Capacity increasing transmission line.
