Name: 2x35kN Hydraulic Tensioners for Stringing Overhead Conductors
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x35
Price: 24.00 USD
Availability: InStock

MOQ:	1set
Price:	USD48,500.00-51,000.00/Set
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x35

Type:

Hydraulic Tensioners For Stringing Overhead Conductors

Max Continuous Tension:

2x35kN

Max Reverse Pulling Force:

2x30kN

Total Weight:

4500kg

Max Reverse Pulling Speed:

5km/h

Bull-wheel Diameter:

1300mm

Product Description

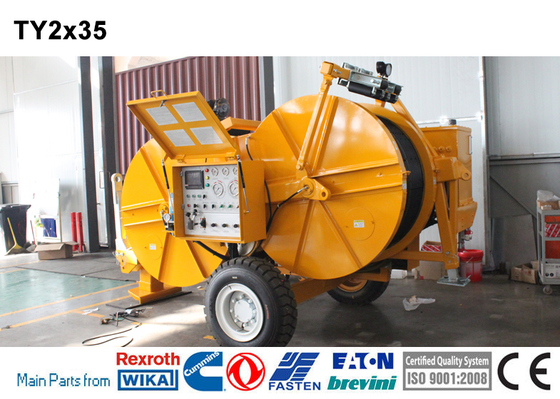

2x35kN Hydraulic Tensioners for Stringing Overhead Conductors

TY2x35 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
TY2x35 Hydraulic Tensioner	besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics	Bull-wheel diameter: 1300mm
	Max conductor diameter: 40mm
	Groove number: 2x5
	Total weight: 4500kg
	Overall dimension (lengthwidthheight): 4300×2250×2700mm
Main configuration	Engine: Cummins
	Speed reducer: German Rexroth / Italy Bonfiglioli
	Hydraulic pump: German Rexroth/Dnish Danfoss
	Main hydraulic valves: USA Sun / Italy ATOS
	Main motor: German Rexroth/French Leduc
Performance	Max intermittent tension: 2x40kN
	Max continuous tension: 2x35kN
	Speed at max tension: 2.5km/h
	Max speed: 5km/h
	Pull at max speed: 2x20kN
	Max reverse pulling force: 2x30kN
	Max reverse pulling speed: 5km/h
Hydraulic Transmission	The machine can realize step less speed.
Hydraulic Transmission	The machine is provided with tension presetting system.
Engine	Diesel: 77kw(103hp)
	Electrical system: 24V
	Cooling system: water
Configuration	Hydraulic oil cooling system
	Digital speed and meter counter
	Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
	Grounding connection point
	Hydraulic dynamometers
Additional Devices	Lighting system for the trailer
	Air brake system for the trailer (extra charge)
	Swivel guide rope roller
	2 hydraulic conductor clamps for drum change operations (extra charge)

2x35kN Hydraulic Tensioners for Stringing Overhead Conductors 0
